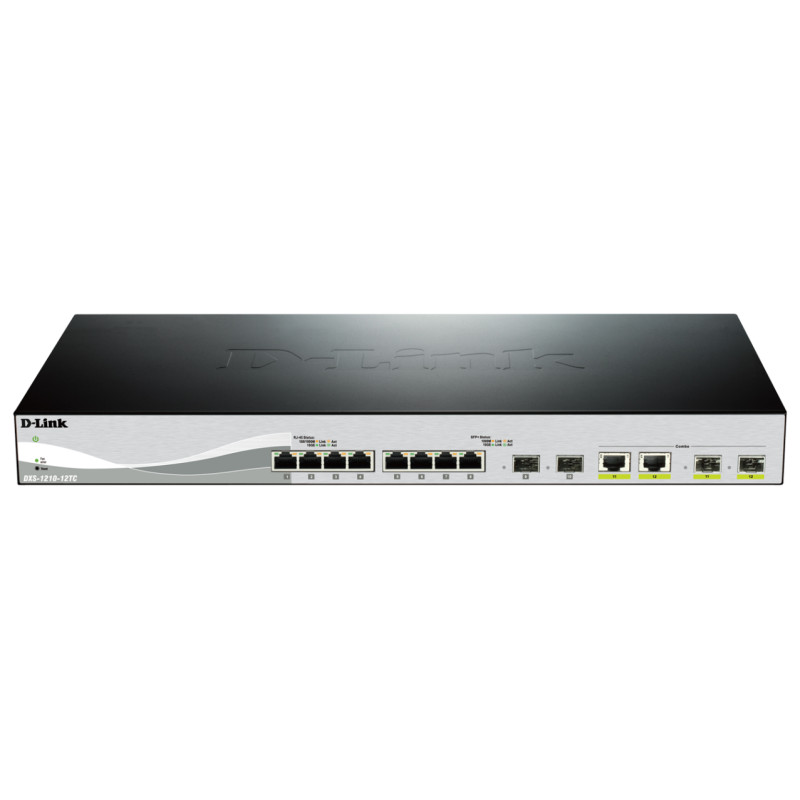

D-Link DXS-1210-12TC8x10GbE 4xSFP+ switch Informácie k záruke: Na produkt je poskytovaná obmedzená doživotná záruka, to znamená, že záručná lehota vyprší až päť rokov po tom, čo spoločnosť D-Link (alebo jej nástupca) ukončí predaj daného produktu v Európe. Pre nárok na obmedzenú doživotnú záruku je potrebné produkt zaregistrovať (viď nižšie) u D-Link Europe do tridsiatich (30) dní od dátumu zakúpenia. Registráciu je možné vykonať cez samoobslužný portál. http://www.dlink.com/sk/sk/support/product-registration-and-support-log-in OVERVIEW Green Technology · Power saving via the following features: o Link Status detection o LED Shut-Off o Port Shut-Off o System Hibernation Security Features Broadcast/Multicast/Unicast Flooding · Port Security supports 64 MACs per port · ARP Spoofing Prevention Intuitive Management · D-Link Network Assistant Utility alebo Web-based GUI Loopback Detection automaticky disable a port keď loop je detegovaný · Cable diagnostiky a správcovia správania na determine cable status · SFP porty pre flexibilitu · Auto MDI/MDIX ŠPECIFIKÁCIE GENERAL Interface o 8-port 10GBASE-T o 2-port SFP+ Štandard & Functions · IEEE 802.3u 100BASE-TX Fast Ethernet · IEEE 802.3ab 1000BASE-T Gigabit Ethernet · IEEE 802.3az compliance · IEEE 802.3an 10GBASE-T 10GbE over8 fiber · IEEE 802.3z 1000BASE-X · Auto MDI/MDIX podpora pre 1000/10GBASE-T Network Cables pre 10GBASE-T · CAT-6 (30 m max) · CAT-6A · CAT-7 (100 m max) Performance Switching Capacity · 240 Gbps Maximum Packet Forwarding Rate · 178.56 Mpps Transmission Method · Store-and-forward MAC Address Table · Up to 16,000 entries per device watts Standby Power Consumption · 42.65 watts Operating Temperature · -5 to 50 ° C Storage Temperature · -40 to 70 ° C Operating Humidity 440 x 210 x 44 mm Weight · DXS-1210-10TS: 3.1 kg · DXS-1210-12TC: 3.15 kg Diagnostic LEDs · Link/Activity/Speed (Por 10GBASE-T port) · Link/Activity/Speed (Per 10G SFP+ port) · Power/F C-Ticket · VCCI · BSMI · CCC Safety · cUL · CB · CE · CCC · BSMI SOFTVÉR L2 Features · MAC address Table o Up to 16K entries · Static MAC addresses 1K Supports at least 128 static multicast address o Per VLAN IGMP Snooping o Support hosť-based fast leave Tree Protocol o 802.1D STP o 802.1w RSTP o 802.1s MSTP · Flow Control o 802.3x Flow Control o HOL Blocking Prevention · Port Mirroring o One-to-One o Many-to-One Maximum 8 skupín/8 portov na skupinu · Jumbo Frame o Up to 9KB · Loopback Detection · ERP (Ethernet Ring Protection Switching) 1 VLAN · 802.1Q VLAN · Port-based VLAN · 4K VLAN Group GVRP1 · Quality of Service (QoS) Asymmetric VLAN · CoS 802.1p Priority Queues o DSCP o ToS o IPv6 Traffic Class o TCP/UDP port o VLAN ID o MAC Address o Ether Type o IP Address o Protocol Type o IPv6 Flow Label. port · Queue Handling o Strict o Weighted Round Robin (WRR) o Deficit Round Robin (DRR) o Weighted Deficit Round Robin (WDRR) · Bandwidth Control o Port-based (Ingress/Egress, min. granularity 64 Kbps) o iSCSI Awareness1 L3 Features · IP Interface o Supports 16 IPv4/v6 interfaces · ARP o 128 Static ARP · Default Route1 · IPv6 Neighbor Discovery (ND) · Static Route1 o Max. 32 entries IPv4 o Max. 32 entries IPv6 Access Control List (ACL) · Max. 50 access list · Max. 256 ACL rules · Max. 50 VLAN prístup map1 · ACL založený na 802.1p priorite o VLAN1 o MAC address o typ Ether · IP address · DSCP · Protocol type · TCP/UDP port number · IPv6 Traffic Class · IPv6 flow label Security Skríning · IP-MAC-Port Binding o DHCP Snooping1 o IP Source Guard1 o Dynamic ARP Inspection1 o IPv6 Snooping1 o IPv6 Source Guard1 o DHCPv6 Guard1 o IPv6 ND Inspection1 o IPv6 Route Advertisement (RA) Guard1 · Traf IPv4/IPv6 · SSL o Support v1/v2/v3 o Support IPv4/IPv6 · ARP Spoofing Prevention1 o Max. 127 entries · DoS Attack Prevention · Port Security o Supports up to 6656 MAC address per port · Duplicate Address Detection OAM · Cable Diagnostics AAA · Web-based Access Control (WAC)1 o Support Dynamic VLAN Assignment Identity-driven Policy (VLAN/ACL/QoS) Assignment · 802.1X Authentication1 o Support Dynamic VLAN Assignment o Identity-driven Policy (VLAN/ACL/QoS) Assignment o Supports local/RADIUS databázy o Supports Port- Supporty EAP, OTP, TLS, TTLS, PEAP · Support IPv4/IPv6 RADIUS Server1 · Support IPv4/IPv6 TACACS+1 · Guest VLAN1 · Compound Authentication1 · Authentication for management access databázy o Support Port-based access control o Support Host-based access control o Support Dynamic VLAN Assignment o Identity-driven Policy (VLAN/ACL/QoS) Assignment Management · Web-based GUI · D-Link Network Assistant Utility · Compact CLI · Telnet Server · TFTP Client · Configura v1/v2c/v3 · SNMP Trap · Smart Wizard · LLDP · LLDP-MED · DHCP Relay1 · System Log · BootP/DHCP Client · SNTP1 · ICMP v6 · IPv4/v6 Dual Stack · DHCP Auto Configuration1 · RMON v1/vd Green V3.0 Technológia · Power Saving by: o LED Shutoff · System Hibernation · Port Shutoff MIB/RFC Standards · RFC 783 TFTP · RFC 951 BootP/DHCP Client · RFC 1157 SNMP v1, v2, v3 · RFC 1213 M2 TFTP · RFC 1493 Bridge MIB · RFC 1769 SNTP · RFC 1542 BootP/DHCP Client · RFC 1901 SNMP v1, v2, v3 · RFC 1907 SNMP v2 MIB · RFC 1908 SNMP v1, v2, v3 · RFC 2138 RADIUS Authentication1 · RFC 2139 RADIUS Authentication · RFC 2233 Interface Group MIB · RFC-2246 SSL · RFC 2475 · RFC 2570 SNMP v1, v2, v3 · RFC 2575 SNMP v1, v2 2618 RADIUS Authentication1 · RFC 2819 RMON v1 · RFC 2865 RADIUS Authentication · RFC 3164 System Log · RFC 3195 System Log · RFC 3411-17 SNMP · D-Link Private MIB · LLDP MIB · Zone Defense
